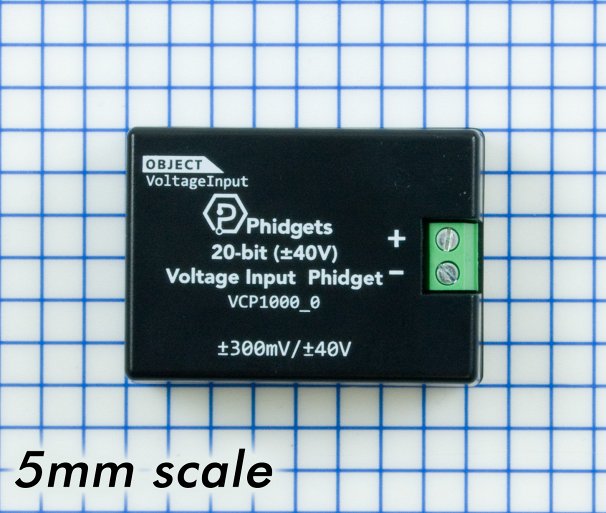

20-bit (40V) Voltage Input Phidget

20-bit (±40V) Voltage Input Phidget

Measure up to ±40V with this high precision isolated voltage input Phidget. Connects to a VINT port.

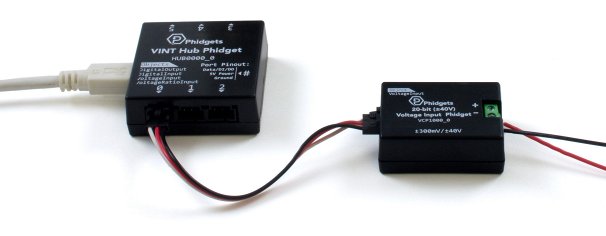

Do you need to measure larger voltage potentials, but would also like to have high precision measurements? This voltage input Phidget is the best of both worlds. You can measure voltage up to ±40V with a resolution of 77 microvolts with this impressive little Phidget. You can switch the voltage range to ±312mV mode from software, increasing the resolution to 600 nanovolts. The VCP1000 connects to a port on a VINT Hub. See the Comaptible Products tab for a list of hubs.



Isolated for Stability

This Phidget is electrically isloated, so a power surge on the circuit you're measuring will not damage your VINT Hub or your computer. Isolation also improves stability by eliminiating potential ground loops.

Sensor Properties

Sensor Type Voltage (DC)


Controlled By VINT

Voltage Sensor

Voltage Difference Max ± 40 V DC
Withstand Voltage Max ± 50 V DC
Measurement Error Max 0.01 %
Sampling Interval Min 100 ms/sample
Sampling Interval Max 60 s/sample

Electrical Properties

Sensor Input Impedance 1 MΩ
Current Consumption Max 13 mA

±40V Range

Voltage Resolution 77 µV DC

±312 mV Range

Voltage Resolution 600 nV DC

Physical Properties

Recommended Wire Size 16 - 26 AWG
Operating Temperature Min -40 °C
Operating Temperature Max 85°C

Software Objects:
Channel Name API Channel
Voltage Input VoltageInput 0
