Top » Catalog » Sensors » 3106_0 » K-Type Thermocouple Adapter [3106_0]
US$8.85

Attach an Omega K-Type thermocouple to this adapter for a convenient way to connect it to a terminal block.

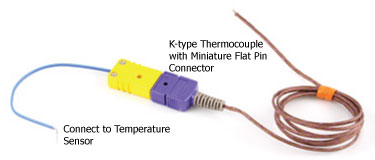

K-Type Thermocouple Adapter



Attach an Omega K-Type thermocouple to this adapter for a convenient way to connect it to a terminal block.







The thermocouple adapter lets you connect an Omega K-type Thermocouple with Miniature Male Connector to the:

  • 1051 - PhidgetTemperatureSensor 1-Input
  • 1048 - PhidgetTemperatureSensor 4-Input

  • Mounting Kit



    For more information on thermocouples, visit the Thermocouple Primer.
    Note: On the 1051, connect the white adapter wire to (-) terminal block and the Red wire to the + terminal block. On the 1048, connect the white wire to G and the red wire to input terminal block (numbered 0 to 3).



    Physical Properties

    Connector A 6 mm Stripped Wire
    Connector B Miniature Omega K-Type Thermocouple Connector (Female)
    Cable Length 100 mm
    Cable Gauge 28 AWG
    Insulation Material Teflon




    This product was added to our catalog on Monday 06 October, 2014.
