Dial Phidget

Dial Phidget

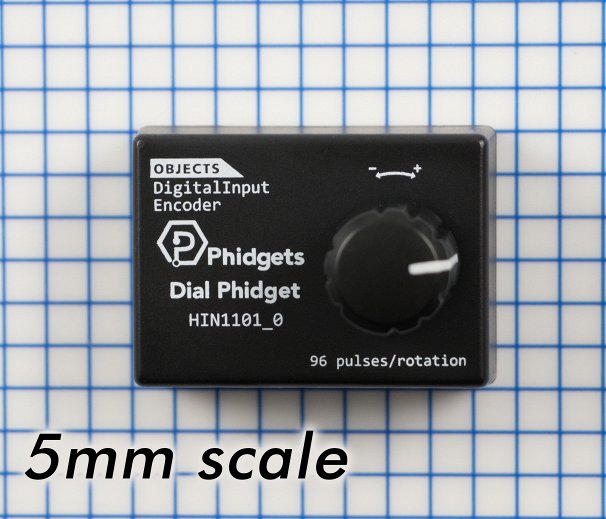

This dial has a fully continuous range of motion and a center pushbutton. Connects to a VINT port.

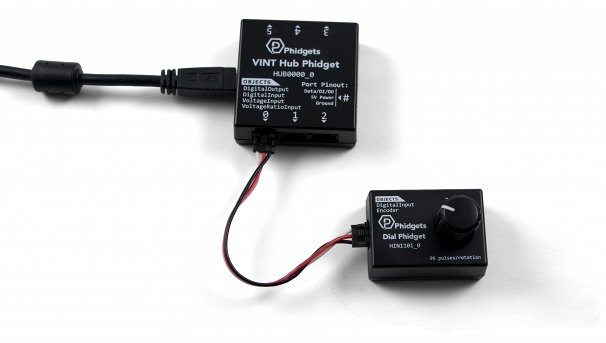

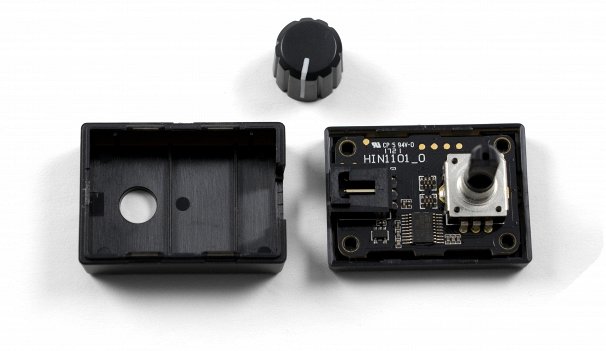

If you need a straightforward solution for a control knob on your project, the Dial Phidget is just what you need. It uses an optical encoder, so it has fully continuous rotation with none of the dead zones or physical wear that potentiometer-based dials have. The HIN1101 connects to a port on a VINT Hub. See the Comaptible Products tab for a list of hubs.

 8xVoltageInputPhidget scale


When the dial is pressed down, a DigitalInput object will change from false to true, so your program can use the change event to trigger a function or feature of your project.


Controlled By VINT

Electrical Properties

Current Consumption (Unconfigured) 18 µA
Current Consumption Max 2.5 mA

Encoder Properties

Encoder Resolution 96 PPR
Timing Resolution 0.00013 s

Physical Properties

Operating Temperature Min -40 °C
Operating Temperature Max 85°C

Software Objects:
Channel Name API Channel
Encoder Input Encoder 0
Digital Input DigitalInput 0

  • API
  • Code Samples

  • Library & Driver Downloads:
  • Windows
  • macOS
  • Linux
  • iOS
  • Android

  • This product was added to our catalog on Tuesday 07 August, 2018.
